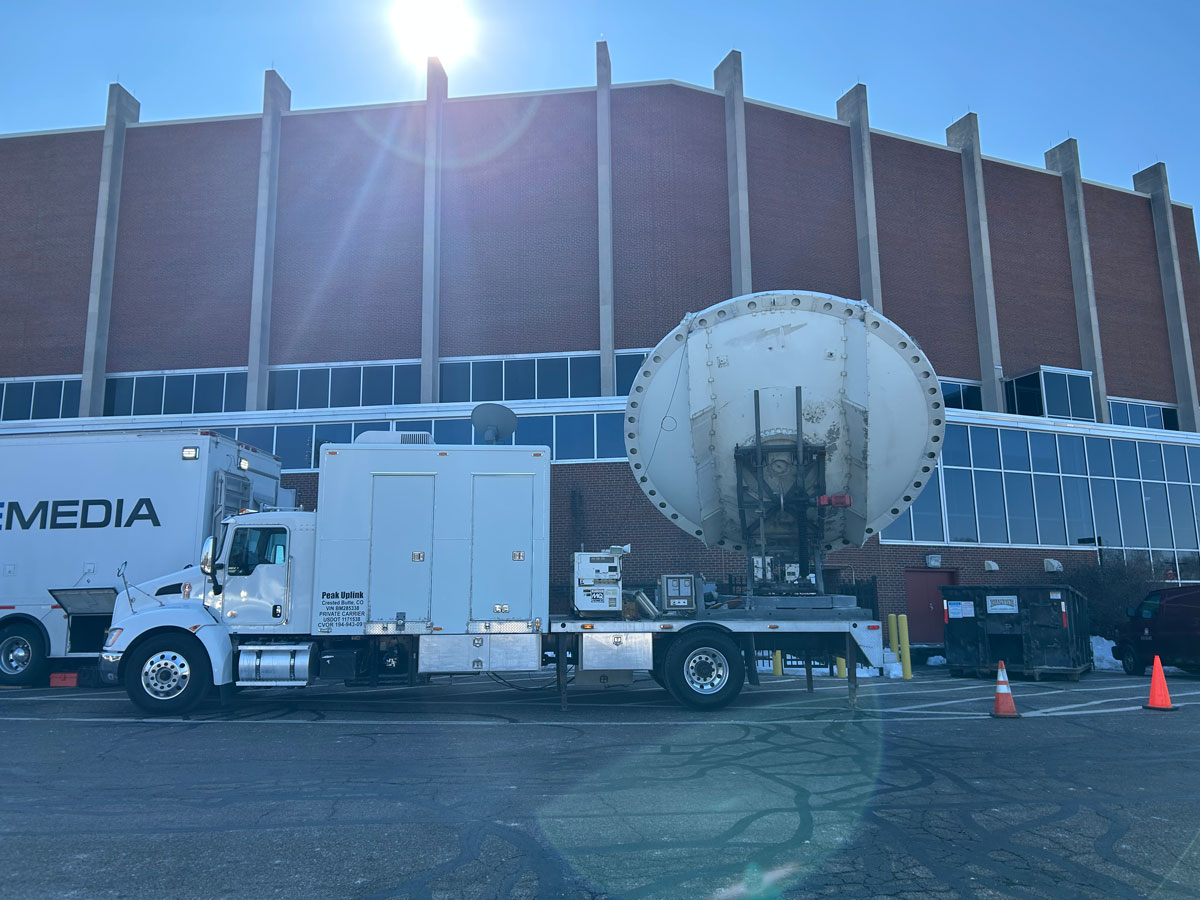

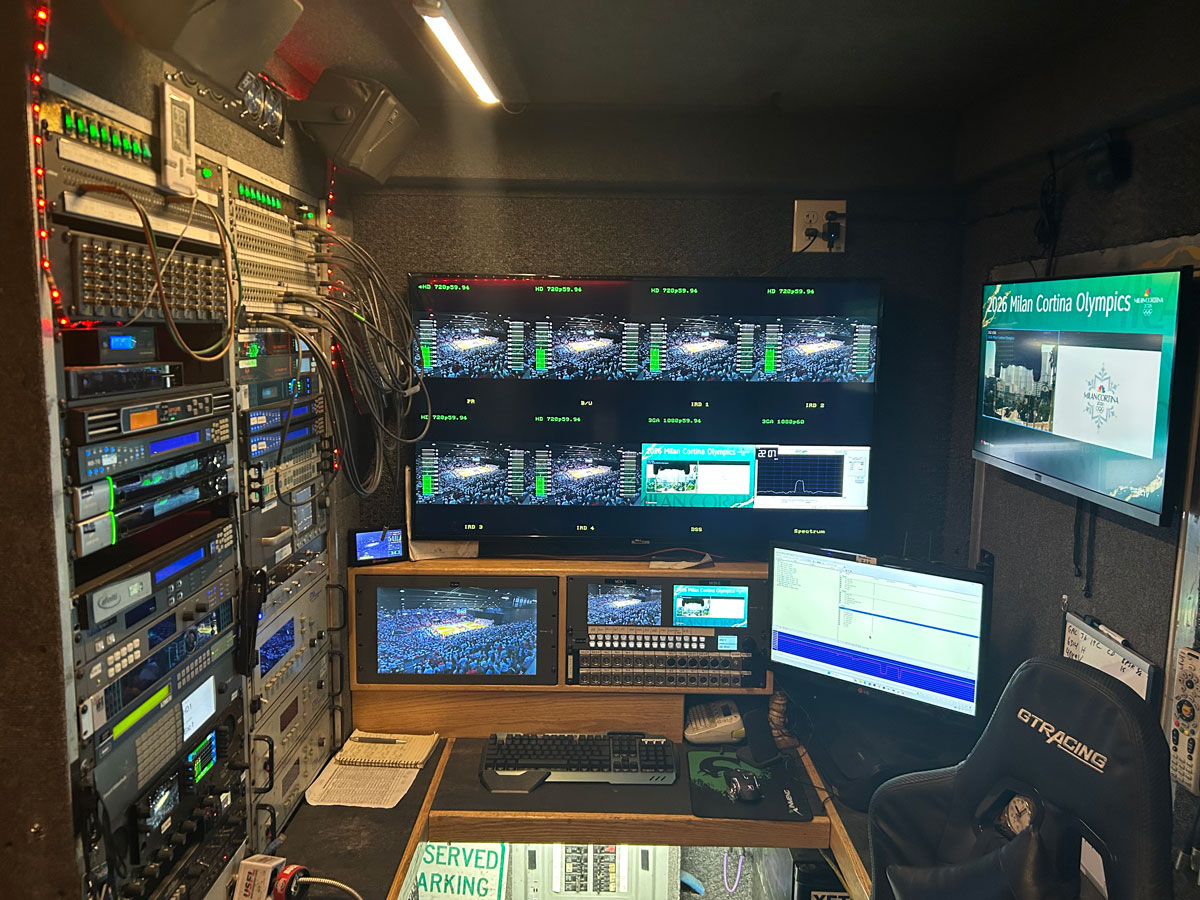

Uplink Truck 12

• 1 – Rigol DSA 1020 Spectrum Analyzer
• 1 – Applied Instruments A1 TURBO S2 Satellite Meter
• 1 – 2.4 meter C/Ku antenna
• 2 – Miteq U-9953-6 iK-L C Band upconverters
• 2 – Miteq U-9956-6 1K-L Ku band upconverters
• 2 – Adtec EN-81 HD Encoders MPEG2/4 DVB-S/DVB-S2 w/BISS
• 1 – Adtec EN-30 HD Encoders MPEG4 DVB-S/DVB-S2 BISS
• 1 – Adtec RD-70 10-bit/1080p Multi Codec Receiver
• 1 – Adtec RD-60 HD/SD Multi Codec Receiver
• 2 – Upcom UC-IRD+ Receiver/Decoders
• 2 – Xicom XTRD 400 watt C/KU HPA’s

• 1 AVL C/KU 2 Port Antenna
• 2 400 Watt Xicom C/KU HPA’s
• 2 Adtec EN-81 HD MPEG2/MPEG4 Encoders w/ BISS 4:2:2 – 4:2:0
• 1080I – 720P – 480I
• 8PSK – QPSK
• Truck is capable of receiving, per encoder 4 stereo AES Pairs/ 16 Channels Embedded Audio/ 4 Channels Analog audio
• Truck is capable of receiving HD SDI, SD SDI, ASI and Composite video
• 1 ADTEC RD-70 HD/SD IRD
• 8PSK – QPSK
• 4:2:2 – 4:2:0
• 4 Stereo Pairs AES audio
• 1 ADTEC RD-76 HD/SD IRD
• 8PSK – QPSK
• 4:2:2 – 4:2:0
• 4 Stereo Pairs AES audio
• 2 Miteq C Band Upconverters
• 2 Miteq Ku Band Upconverters
• 1 DekTec DTA-145 Bit Stream Analyzer
• 7 HD Monitors
• 1 HD DSS DirecTV Receiver
• 6 HD?SD SDI/ASI Video DA’s
• Audio Frequency and Phase Meters
• D-A & A-D Conversion
• Fully redundant ADA & VDA w/ redundant power supplies
• Downlink GT: C Band 21.7 KU Band 26.5
• 1500′ Fiber optic TAC 8 cable
• 2 AJA Fiber Optic Transmitters/Receivers

• 4 – Verizon Wireles Home Cell Phone Terminals
• 1 – Imarsat Marine Satellite Terminal
• 1 – 4 Channel-4 Wire Interface
• 1 – Clearcom MS 232 intercom station
• 1 – Clearcom TW12B clearcom – RTS interface
• 1 – Comtek BST 25 wireless IFB transmitter
• 1 – Studio Technologies Model 2 IFB Mixer
• 1 – JK Audio Innkeeper 4

• 1 – TVLogic Multi Format LCD Monitor HD/SD
• 2 – Panasonic 32″ LED Monitors
• 1 – Viewsonic 23″ Widescreen Multi-touch ISP Monitor
• 4 – Black Magic Teranex Frame Syncs
• 1 – DirecTV HD System
• 2 – Black Magic Smartscope Duo Duel Monitors
• 1 – Coles Ribbon Lipped Microphone
• 1 – 250′ 2 Video, 4 audio cable reel
• 1 – 150′ 2 Video, 4 audio cable reel
• 1 – 100′ 2 Video, 4 audio cable reel
• 1 – 125′ 5 Video Mult
• 1 – Black Magic ATEM Television Studio
• 1 – Black Magic Micro Videohub Router
• 1 – Leader Phabrix HD/SD Video and Audio Test Set
• 1 – Marshall AR-DM-1 16 Channel Audio Monitor
• 1 – Videotek VTM Series HD/SD Data Stream Analyzer
• 1 – Black Magic Hyperdeck Studio
• 2 – Studio Technologies 742 Stereo Audio Mixers
• 1 – Kramer 907 Stereo Audio Amplifer
• 2 – JBL Control-1 Speakers
• Powertech 12KW Generator
• 125′ shore power cable cam locks or bare ends
